Preselector DB-22A

Preselector DB-22A; Radio Mfg. Engineers (ID = 1429198) Amateur-D

Preselector DB-22A; Radio Mfg. Engineers (ID = 1429199) Amateur-D

Preselector DB-22A; Radio Mfg. Engineers (ID = 1429200) Amateur-D

Preselector DB-22A; Radio Mfg. Engineers (ID = 1429202) Amateur-D
Preselector DB-22A; Radio Mfg. Engineers (ID = 1718528) Amateur-D Preselector DB-22A; Radio Mfg. Engineers (ID = 1718529) Amateur-D
Preselector DB-22A; Radio Mfg. Engineers (ID = 210943) Amateur-D Preselector DB-22A; Radio Mfg. Engineers (ID = 1429197) Amateur-D
Preselector DB-22A; Radio Mfg. Engineers (ID = 1718530) Amateur-D Preselector DB-22A; Radio Mfg. Engineers (ID = 1718531) Amateur-D
Preselector DB-22A; Radio Mfg. Engineers (ID = 1718532) Amateur-D
Use red slider bar for more.
Preselector DB-22A; Radio Mfg. Engineers (ID = 1718528) Amateur-D

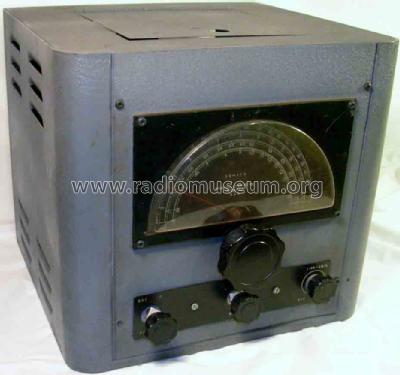

Radio Mfg. Engineers: Preselector DB-22A [Amateur-D] ID = 1718528 933x874
Select picture or schematic to display from thumbnails on the right and click for download.
For model Preselector DB-22A, Radio Mfg. Engineers, Inc. (RME); Peoria, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Mfg. Engineers, Inc. (RME); Peoria, IL
Year: 1947 ? Category: Amateur Equipment (Other, but not Key)
Valves / Tubes 3: 6BA6 6BA6 6X4
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Preselector DB-22A - Radio Mfg. Engineers, Inc. RME
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 12 x 11 inch / 279 x 305 x 279 mm
Notes External preselector matching the RME-45 and RME-84 series receivers.
Price in first year of sale 86.00 $

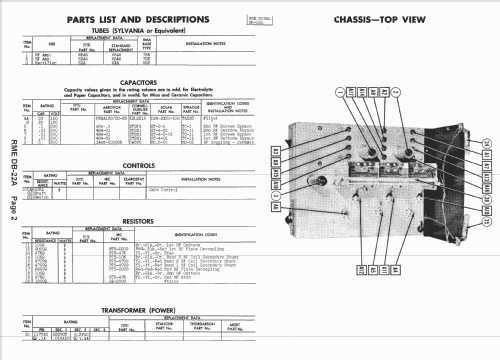

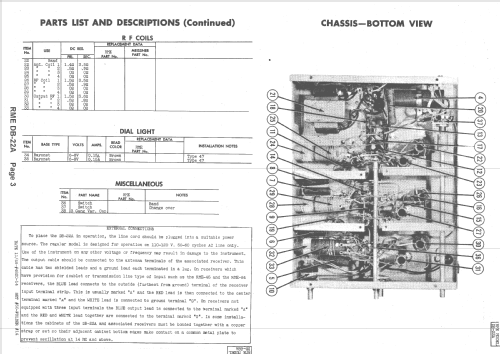

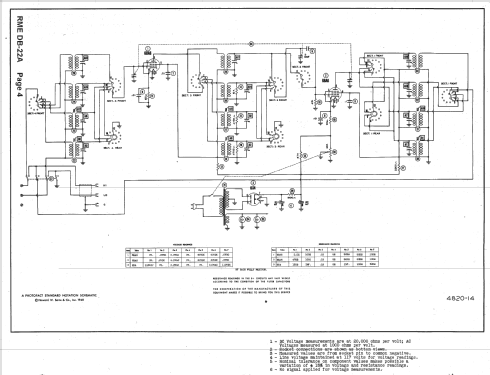

Mentioned in Photofact Folder, Howard W. SAMS (4820-14 Set 50 Folder 14)
Literature/Schematics (1) 1951 Newark catalog Nº 51

Model page created by Vitor Oliveira. See "Data change" for further contributors.



All listed radios etc. from Radio Mfg. Engineers, Inc. (RME); Peoria, IL
Here you find 49 models, 25 with images and 32 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
