Converter VHF-152A

Converter VHF-152A; Radio Mfg. Engineers (ID = 403593) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403594) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403595) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403596) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403597) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403598) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403599) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403600) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403601) Converter

Converter VHF-152A; Radio Mfg. Engineers (ID = 403602) Converter
Converter VHF-152A; Radio Mfg. Engineers (ID = 1717369) Converter Converter VHF-152A; Radio Mfg. Engineers (ID = 1717368) Converter
Converter VHF-152A; Radio Mfg. Engineers (ID = 845058) Converter Converter VHF-152A; Radio Mfg. Engineers (ID = 210891) Converter
Converter VHF-152A; Radio Mfg. Engineers (ID = 845059) Converter Converter VHF-152A; Radio Mfg. Engineers (ID = 1717370) Converter
Converter VHF-152A; Radio Mfg. Engineers (ID = 1717371) Converter Converter VHF-152A; Radio Mfg. Engineers (ID = 1717372) Converter
Converter VHF-152A; Radio Mfg. Engineers (ID = 1717373) Converter Converter VHF-152A; Radio Mfg. Engineers (ID = 1717374) Converter
Use red slider bar for more.
Converter VHF-152A; Radio Mfg. Engineers (ID = 1717369) Converter
Radio Mfg. Engineers: Converter VHF-152A [Converter] ID = 1717369 933x867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Converter VHF-152A, Radio Mfg. Engineers, Inc. (RME); Peoria, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Mfg. Engineers, Inc. (RME); Peoria, IL
Year: 1951 Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Valves / Tubes 3: 6AK5 6J6 5Y3GT VR150
Main principle RF Converter/Adapter (not voltage converter)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Converter VHF-152A - Radio Mfg. Engineers, Inc. RME
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 12 x 11 inch / 279 x 305 x 279 mm
Notes Converter for reception of 27-29,8 / 49,5-54,2 / 143,8-148,2 MHz in connection with a suitable communications receiver (such as RME-45, RME-84), IF out 6950 kHz.
Price in first year of sale 97.00 $

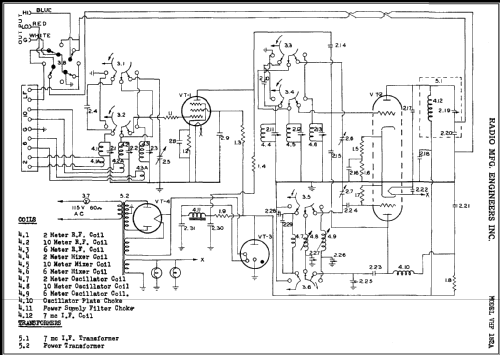

Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in Photofact Folder, Howard W. SAMS (4821-18 Set 51 Folder 18)
Literature/Schematics (1) 1951 Newark catalog Nº 51

Model page created by Peter Rutishauser. See "Data change" for further contributors.



All listed radios etc. from Radio Mfg. Engineers, Inc. (RME); Peoria, IL
Here you find 49 models, 25 with images and 32 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
