• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Receptor Co. Inc.; New York

• Year
• 1953 ?

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 218508

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AF4 6BQ7A 6X4

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Converter

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: UHF Converter C1709-P - Radio Receptor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

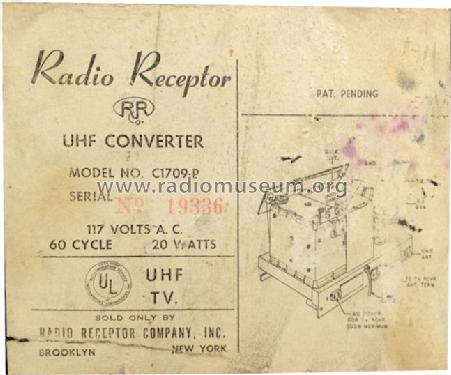

• Radio Receptor model C-1709-P is an AC operated all channel UHF convertor.
  "Cavi-Tuner" converts UHF channels 14-83 into VHF. 20 W power consumption. Uses a Dewald 616 radio cabinet.

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 222 , Folder 12, dated 11-53)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
