• Country
• France

• Manufacturer / Brand
• Radio Commercial; Paris

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127991

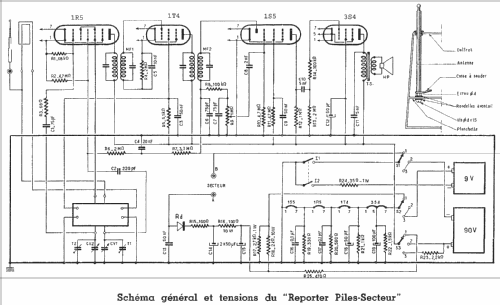

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Reporter [Piles-Secteur] - Radio Commercial; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 230 x 160 mm / 14.2 x 9.1 x 6.3 inch

• Notes
• Cadre incorporé, antenne téléscopique, alimentation secteur ou piles 9 et 90V.

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
