- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Wire Television Inc.; New York - see also Lafayette
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52761

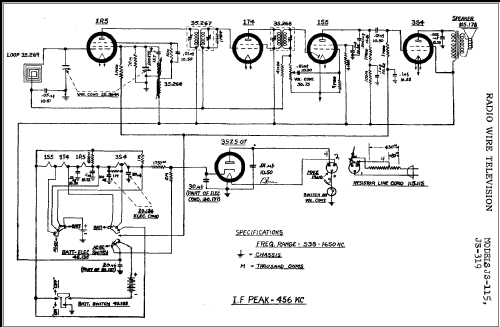

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 117 / 67.5 & 3 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: JS-115 - Radio Wire Television Inc.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 6.25 x 9.5 x 4.5 inch / 159 x 241 x 114 mm
- Notes
-
Resistor line cord for 117V.
Label inside "Three 1-1/2 volt 'A' Batteries Everready #950 or equivalent" and "67-1/2 volt 'B' Battery Everady #467 or equivalent". Case is leather over wood.
- Net weight (2.2 lb = 1 kg)
- 4 lb 13 oz (4.813 lb) / 2.185 kg
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
