JS-174

JS-174 ; Radio Wire (ID = 654487) Radio
JS-174 ; Radio Wire (ID = 1485063) Radio JS-174 ; Radio Wire (ID = 1485062) Radio
JS-174 ; Radio Wire (ID = 1485064) Radio JS-174 ; Radio Wire (ID = 1485065) Radio
Use red slider bar for more.
JS-174 ; Radio Wire (ID = 1485063) Radio
Radio Wire: JS-174 [Radio] ID = 1485063 932x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model JS-174, Radio Wire Television Inc.; New York - see also Lafayette

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Wire Television Inc.; New York - see also Lafayette
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6SA7GT 6SK7GT 6SQ7GT 6SQ7GT 6U5 25L6GT 25L6GT 25Z6GT 25Z6GT
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: JS-174 - Radio Wire Television Inc.;
Notes BC (535-1680 kHz), SW1 (2.2-7.0 MHz) and SW2 (7.5-24.0 MHz) bands. Loop antenna for BC band. Tuning eye. Push-pull audio amplifier. Ballast:
115.104 - 120 V
115.105 - 220 V

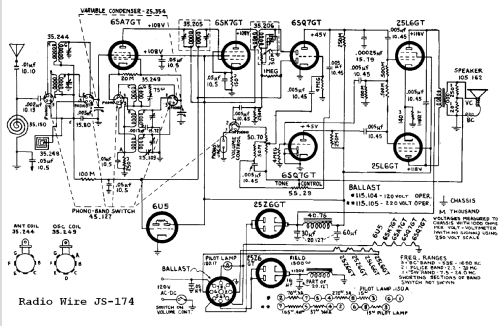

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in Rider's 19-17

Model page created by Peter Rutishauser. See "Data change" for further contributors.
