• Year
  • 1952 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 52784

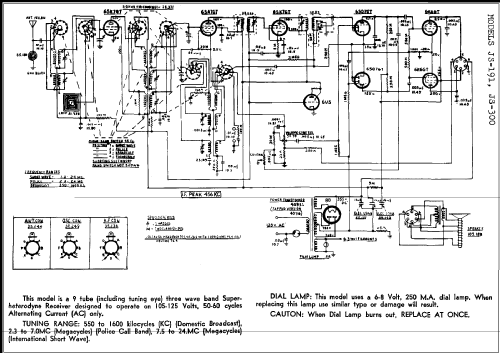

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: JS300 - Radio Wire Television Inc.;
  • Circuit diagram reference
  • Rider's Perpetual, Volume 20 covering 1950
  • Author
  • Model page created by Peter Rutishauser. See "Data change" for further contributors.
