Synchrovox Ch= 3669
Use red slider bar for more.
Radio L.L. Lucien: Synchrovox Ch= 3669 [Radio] ID = 2403967 1400x1598
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
LL || Radio LL | ||||
|---|---|---|---|---|---|
| Year: 1933 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: 58 58 56 58 2B7 47 80 |
| Main principle | Superhet with RF-stage; ZF/IF 110,3 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 150; 220; 250 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Synchrovox Ch= 3669 - Radio L.L. Lucien Levy, LL |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 390 x 500 x 270 mm / 15.4 x 19.7 x 10.6 inch |
| Net weight (2.2 lb = 1 kg) | 15.8 kg / 34 lb 12.8 oz (34.802 lb) |
| External source of data | Serge Laffont/Martin Renoth |

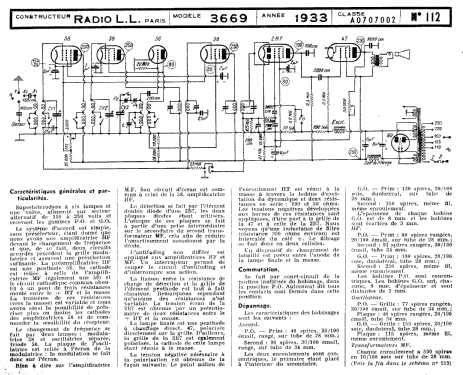

| Mentioned in | Schémathèque Toute la Radio (STR) (No. 112) |
