Superhétérodyne A Type 3307 8 lampes
Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Country
- France
- Manufacturer / Brand
- Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 86607
-
- alternative name: LL || Radio LL

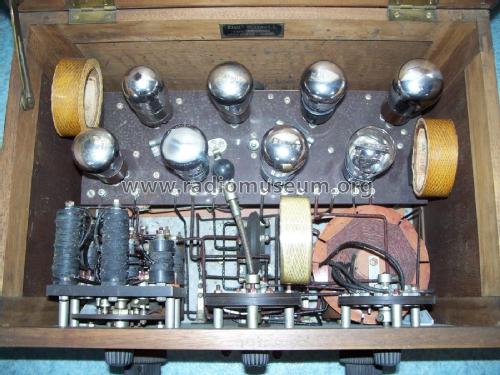

Collection privée (réf.: 56)
Collection privée (réf.: 56)
Collection privée (réf.: 56)
Collection privée (réf.: 56)
Collection privée (réf.: 56)
Collection privée (réf.: 56)
- Number of Tubes
- 8
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 40-80 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Superhétérodyne A Type 3307 [8 lampes] - Radio L.L. Lucien Levy, LL
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 420 x 260 x 320 mm / 16.5 x 10.2 x 12.6 inch
- Notes
-
Audition sur 7 lampes (casque) ou 8 lampes (haut-parleur).
- Net weight (2.2 lb = 1 kg)
- 9.4 kg / 20 lb 11.3 oz (20.705 lb)
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref 29374)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
