Miniavox 41

Miniavox 41; Radio L.L. Lucien (ID = 1448249) Radio

Miniavox 41; Radio L.L. Lucien (ID = 1448250) Radio
Miniavox 41; Radio L.L. Lucien (ID = 223718) Radio Miniavox 41; Radio L.L. Lucien (ID = 223720) Radio
Miniavox 41; Radio L.L. Lucien (ID = 223719) Radio Miniavox 41; Radio L.L. Lucien (ID = 223713) Radio
Miniavox 41; Radio L.L. Lucien (ID = 223716) Radio Miniavox 41; Radio L.L. Lucien (ID = 1448116) Radio
Miniavox 41; Radio L.L. Lucien (ID = 1697862) Radio
Use red slider bar for more.

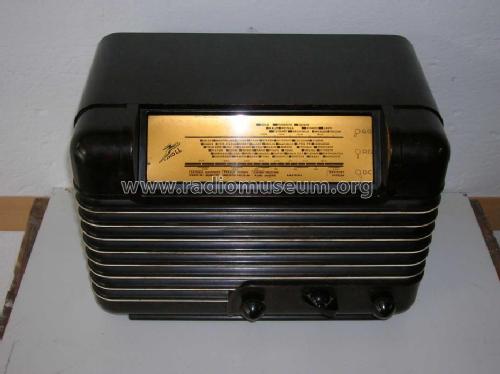

Miniavox 41; Radio L.L. Lucien (ID = 223718) Radio
Radio L.L. Lucien: Miniavox 41 [Radio] ID = 223718 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miniavox 41, Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris:
manopole non originali

Country:  France
Manufacturer / Brand:  Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
alternative name

LL || Radio LL
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6E8G 6K7G 6Q7G 25L6G 25Z6G
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Miniavox 41 - Radio L.L. Lucien Levy, LL
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Gammes d'ondes: OC 19 à 51 m, PO 184 à 588 m, GO 725 à 1980 m.

Price in first year of sale 1'565.00 FRF
External source of data Serge Laffont/Martin Renoth
Mentioned in Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 304)

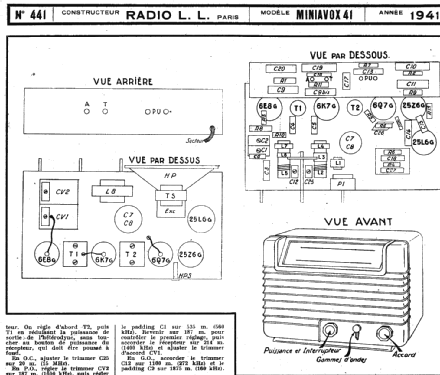

Literature/Schematics (1) Schémathèque Toute la Radio (STR)
Literature/Schematics (2) Le grand livre de la TSF (Doctsf Ref 2456)


All listed radios etc. from Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
Here you find 366 models, 260 with images and 72 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
