- Country
- France
- Manufacturer / Brand
- Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 235508
-
- alternative name: LL || Radio LL

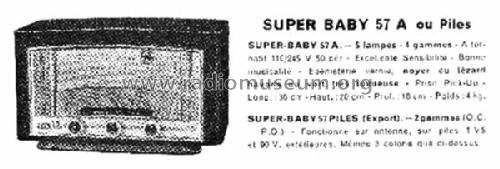

Dépliant 1956
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110/245 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super-Baby 57A - Radio L.L. Lucien Levy, LL
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 360 x 200 x 180 mm / 14.2 x 7.9 x 7.1 inch
- Notes
-
4 gammes d'ondes. Prise Pick-up.
Ébénisterie vernie, noyer ou lèzard havane ou vert.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Price in first year of sale
- 18,450.00 FRF
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref 24961)
- Literature/Schematics (2)
- - - Manufacturers Literature (Prix de Vente Sep. 1956)
- Other Models
-
Here you find 375 models, 266 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
Collections
The model Super-Baby is part of the collections of the following members.
