Archer Stereodyne/3

Archer Stereodyne/3 ; Radio Shack Tandy, (ID = 523292) Ampl/Mixer

Archer Stereodyne/3 ; Radio Shack Tandy, (ID = 523293) Ampl/Mixer
Archer Stereodyne/3 ; Radio Shack Tandy, (ID = 523291) Ampl/Mixer
Use red slider bar for more.
Archer Stereodyne/3 ; Radio Shack Tandy, (ID = 523291) Ampl/Mixer

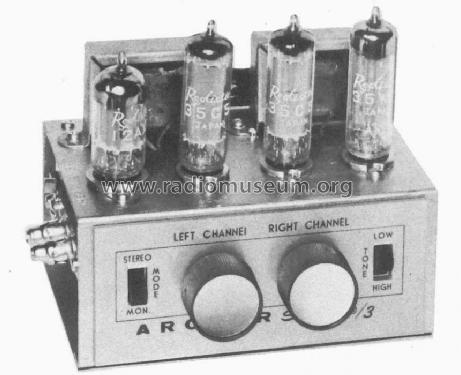

Radio Shack Tandy,: Archer Stereodyne/3 [Ampl/Mixer] ID = 523291 861x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Archer Stereodyne/3, Radio Shack (Tandy, Realistic, Micronta); USA:
Sams photofact.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1959 ? Category: Audio Amplifier or -mixer
Valves / Tubes 4: 12AX7 35C5 35C5 35W4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Archer Stereodyne/3 - Radio Shack Tandy, Realistic,
Material Metal case
Shape Chassis only or for «building in»
Notes

AC operated stereo amplifier.
Warning: chassis is connected to AC mains !

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 503 folder 4 date 10-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
