De Luxe Neutrodyne

De Luxe Neutrodyne ; Radio Shack Tandy, (ID = 1257171) Kit
Use red slider bar for more.
De Luxe Neutrodyne ; Radio Shack Tandy, (ID = 1257171) Kit
Radio Shack Tandy,: De Luxe Neutrodyne [Kit] ID = 1257171 933x706
Select picture or schematic to display from thumbnails on the right and click for download.
For model De Luxe Neutrodyne, Radio Shack (Tandy, Realistic, Micronta); USA:

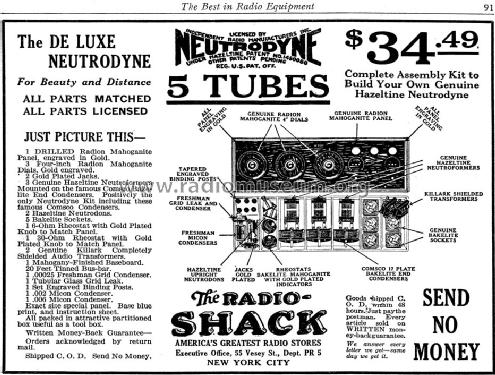

May 1924 Popular Radio magazine advertisement page 91

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1924 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: De Luxe Neutrodyne - Radio Shack Tandy, Realistic,
Material Various materials
Shape Tablemodel, with any shape - general.
Notes The Radio Shack De Luxe Neutrodyne kit complete with drilled and engraved front panel.
Price in first year of sale 34.00 USD
Literature/Schematics (1) May 1924 Popular Radio magazine advertisement page 91

Model page created by Alan Larsen. See "Data change" for further contributors.
