DX-190

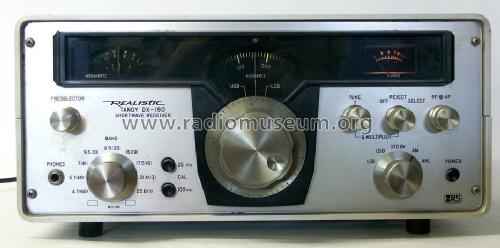

DX-190 ; Radio Shack Tandy, (ID = 314039) Amateur-R DX-190 ; Radio Shack Tandy, (ID = 314040) Amateur-R
DX-190 ; Radio Shack Tandy, (ID = 314041) Amateur-R DX-190 ; Radio Shack Tandy, (ID = 314042) Amateur-R
Use red slider bar for more.
DX-190 ; Radio Shack Tandy, (ID = 314039) Amateur-R
Radio Shack Tandy,: DX-190 [Amateur-R] ID = 314039 933x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model DX-190, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1972 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) 26:
Main principle Superhet, double/triple conversion; ZF/IF 2420/455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DX-190 - Radio Shack Tandy, Realistic,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 380 x 185 x 245 mm / 15 x 7.3 x 9.6 inch
Notes Multiband shortwave receiver with 9 shortwave bands (60, 49, 41, 31, 25, 19, 16, 13, 11 m), integrated 25 / 100 kHz crystal calibrator, Q - multiplier, preselector.
Technically identical to the Allied SX-190 (broadcast band coverage) and AX-190 (ham band coverage); matching speaker SP-190.
Net weight (2.2 lb = 1 kg) 9.1 kg / 20 lb 0.7 oz (20.044 lb)
Price in first year of sale 249.00 $
Collectors' prices
Source of data -- Original prospect or advert

Model page created by Martin Bösch. See "Data change" for further contributors.
