Micronta Signal Injector 22-4032

Micronta Signal Injector 22-4032; Radio Shack Tandy, (ID = 1249888) Equipment

Micronta Signal Injector 22-4032; Radio Shack Tandy, (ID = 1249889) Equipment
Micronta Signal Injector 22-4032; Radio Shack Tandy, (ID = 1249185) Equipment
Use red slider bar for more.
Micronta Signal Injector 22-4032; Radio Shack Tandy, (ID = 1249185) Equipment
Radio Shack Tandy,: Micronta Signal Injector 22-4032 [Equipment] ID = 1249185 542x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micronta Signal Injector 22-4032, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1975 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 1: 2SB134
Wave bands - without
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Micronta Signal Injector 22-4032 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 1.5 x 4.75 x 1.5 inch / 38 x 121 x 38 mm

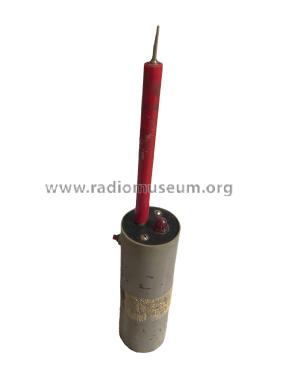

Notes Hand held signal injector suitable for signal tracing in AF, IF and RF circuits. A miniature transistor oscillator is built into the probe.
Source of data - - Manufacturers Literature

Model page created by George Papaiz. See "Data change" for further contributors.
