Realistic 12-609A

Realistic 12-609A; Radio Shack Tandy, (ID = 649874) Radio Realistic 12-609A; Radio Shack Tandy, (ID = 649875) Radio
Realistic 12-609A; Radio Shack Tandy, (ID = 649876) Radio
Use red slider bar for more.
Realistic 12-609A; Radio Shack Tandy, (ID = 649874) Radio
Radio Shack Tandy,: Realistic 12-609A [Radio] ID = 649874 367x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic 12-609A, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1976 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.38 W (unknown quality)
from Radiomuseum.org Model: Realistic 12-609A - Radio Shack Tandy, Realistic,
Material Special material, described in the notes.
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 7 x 12 x 3.5 mm / 0.3 x 0.5 x 0.1 inch

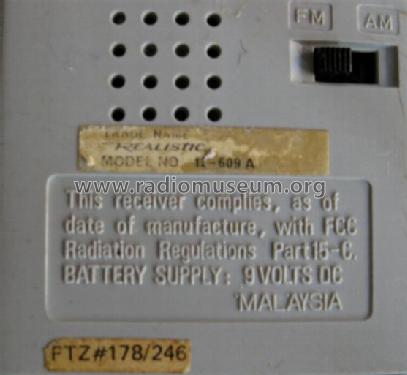

Notes Vorderfront Leichtmetall, sonst Seiten schwarzer-, Rückwand grauer Kunststoff. Kopfhöreranschluss an der Seite, FTZNr.:178/246, made in Malaysia.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Collectors' prices

Model page created by Rudolf Kernchen. See "Data change" for further contributors.
