Realistic 12-718

Realistic 12-718 ; Radio Shack Tandy, (ID = 1286785) Radio Realistic 12-718 ; Radio Shack Tandy, (ID = 1286786) Radio
Realistic 12-718 ; Radio Shack Tandy, (ID = 642743) Radio Realistic 12-718 ; Radio Shack Tandy, (ID = 1749848) Radio
Realistic 12-718 ; Radio Shack Tandy, (ID = 1795506) Radio Realistic 12-718 ; Radio Shack Tandy, (ID = 1795507) Radio
Use red slider bar for more.
Realistic 12-718 ; Radio Shack Tandy, (ID = 1286785) Radio
Radio Shack Tandy,: Realistic 12-718 [Radio] ID = 1286785 500x979
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic 12-718, Radio Shack (Tandy, Realistic, Micronta); USA:
By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at www RadioShackCatalogs.com. This picture is from 1987, page 82.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1987–1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

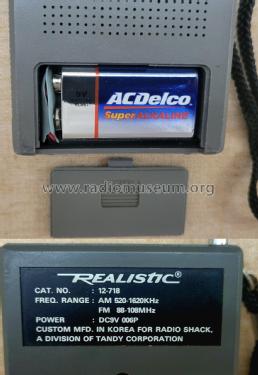

Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: Realistic 12-718 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.9 x 5.3 x 1.25 inch / 74 x 135 x 32 mm
Notes

Realistic 12-718 featured in the catalog Radio Shack 1987 under the slogan "On-The-go" listening - portable radios. It has a one-chip IC design "for super sound". Built-in AFC-FM, rotary volume and tuning controls, slide-rule dial. Telescoping FM antenna, earphone for private listening. Pocket radio, wrist strap. FM: 88 - 108 MHz, AM: 520 - 1.620 kHz, made in (S) Korea for Tandy.

Price in first year of sale 16.95 $

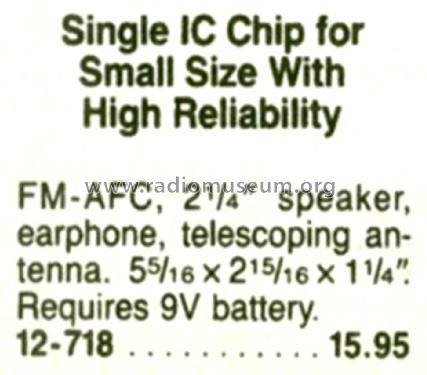

Literature/Schematics (1) Radio Shack Catalog (1987, No. 406, page 82)
Literature/Schematics (2) Radio Shack Catalog (1989, N0 432, page 100, 1990, No. 446, page 96.)
