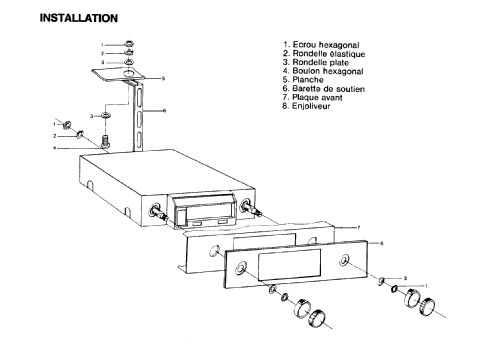

Realistic 12-9257; Radio Shack Tandy, (ID = 1234803) Car Radio

Realistic 12-9257; Radio Shack Tandy, (ID = 1234804) Car Radio

Realistic 12-9257; Radio Shack Tandy, (ID = 1234805) Car Radio

Realistic 12-9257; Radio Shack Tandy, (ID = 1234806) Car Radio

Realistic 12-9257; Radio Shack Tandy, (ID = 1234808) Car Radio

Realistic 12-9257; Radio Shack Tandy, (ID = 1234809) Car Radio
Realistic 12-9257; Radio Shack Tandy, (ID = 1234801) Car Radio
Use red slider bar for more.
Realistic 12-9257; Radio Shack Tandy, (ID = 1234801) Car Radio
Radio Shack Tandy,: Realistic 12-9257 [Car Radio] ID = 1234801 933x268
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic 12-9257, Radio Shack (Tandy, Realistic, Micronta); USA:
Tandy

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1985 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10: LA2100 LA3161 µPC1185H
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13.2 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (unknown quality)
from Radiomuseum.org Model: Realistic 12-9257 - Radio Shack Tandy, Realistic,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 135 x 42 mm / 7 x 5.3 x 1.7 inch
Notes Autoradio stéréophonique avec lecteur de cassette Compact (C30-C90). Gamme PO: 520-1620 KHz, sensibilité: 56µV. Gamme GO: 150-300 KHz, sensibilité: 200µV. Gamme FM: 88-108 MHz, sensibilité: 10µV. Puissance de sortie: 2x 7W, impédance de sortie (HP): 4 ohms. Réponse en fréquence 60-10.000 Hz, rapport signal/bruit >35dB.
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Source of data - - Manufacturers Literature

Model page created by Jean Marchal. See "Data change" for further contributors.



All listed radios etc. from Radio Shack (Tandy, Realistic, Micronta); USA
Here you find 1036 models, 886 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radio Shack Tandy,: Realistic 12-9257
Threads: 1 | Posts: 1
Hits: 1360     Replies: 0
radio-shac: 12-9257; Realistic
Jean Marchal
13.May.12
  1

Autoradio K7

Prix de mise sur le marché : 484.00 FF en 1988

Equipement en transistors : 3 x KSC839-O, KSC839-Y, KSD471AY

Equipement en iC : LA1150, LA2100N.C, LA3161, KIA7343P, µPC1185H
