Realistic de Luxe

Realistic de Luxe ; Radio Shack Tandy, (ID = 749420) Radio Realistic de Luxe ; Radio Shack Tandy, (ID = 749417) Radio
Realistic de Luxe ; Radio Shack Tandy, (ID = 749418) Radio Realistic de Luxe ; Radio Shack Tandy, (ID = 749419) Radio
Use red slider bar for more.

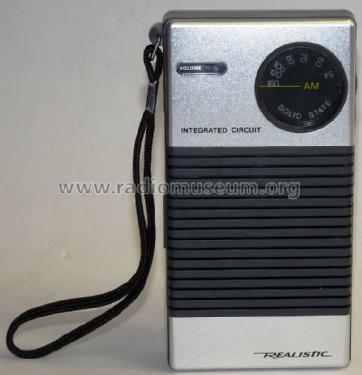

Realistic de Luxe ; Radio Shack Tandy, (ID = 749420) Radio
Radio Shack Tandy,: Realistic de Luxe [Radio] ID = 749420 768x794
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic de Luxe, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: 2SC929 2SC929 2SC929
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Realistic de Luxe - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 137 x 29 mm / 2.8 x 5.4 x 1.1 inch
Notes

Integrated Circuit AM Pocket Radio. Frequenzbereich: 540..1600 kHz. 1 lin-IC Type LA4140 (NF-E). Ferritantenne 5,5 cm, Kopfhöreranschluss über Klinkenbuchse 3,5 mm. Ext. Power DC-6 Volt. Katalog Nr. 12-173B

Made in Hong Kong

Net weight (2.2 lb = 1 kg) 0.180 kg / 0 lb 6.3 oz (0.396 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
