Realistic DX-150A

Realistic DX-150A; Radio Shack Tandy, (ID = 1298199) Amateur-R
Realistic DX-150A; Radio Shack Tandy, (ID = 1771625) Amateur-R Realistic DX-150A; Radio Shack Tandy, (ID = 522219) Amateur-R
Use red slider bar for more.
Realistic DX-150A; Radio Shack Tandy, (ID = 1771625) Amateur-R
Radio Shack Tandy,: Realistic DX-150A [Amateur-R] ID = 1771625 640x478

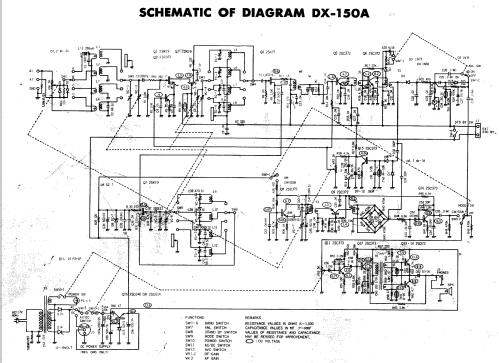

Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic DX-150A, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1969–1971 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 120 / 8 x 1,5 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Realistic DX-150A - Radio Shack Tandy, Realistic,
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.2 x 6.5 x 9.25 inch / 361 x 165 x 235 mm
Notes coverage 535 KHz - 30 MHz in 4 bands, bandspread tuning; AM, SSB (BFO); front end with FETs
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 120.00 $
Collectors' prices

Model page created by Martin Bösch. See "Data change" for further contributors.
