Realistic DX-160 Cat.-No. 20-152

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1171038) Amateur-R

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1932560) Amateur-R

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1932563) Amateur-R

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1932565) Amateur-R

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1932566) Amateur-R

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1932568) Amateur-R

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1936125) Amateur-R

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1936126) Amateur-R
Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 411848) Amateur-R Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 411849) Amateur-R
Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 411850) Amateur-R Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 876291) Amateur-R
Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 2284897) Amateur-R Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 307630) Amateur-R
Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 307637) Amateur-R Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 407856) Amateur-R
Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1189478) Amateur-R Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 1494503) Amateur-R
Use red slider bar for more.

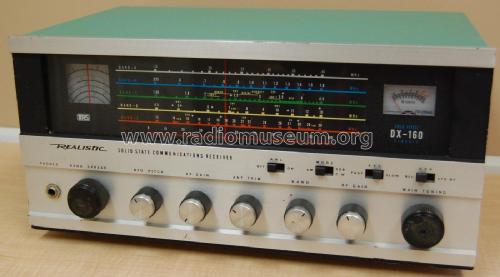

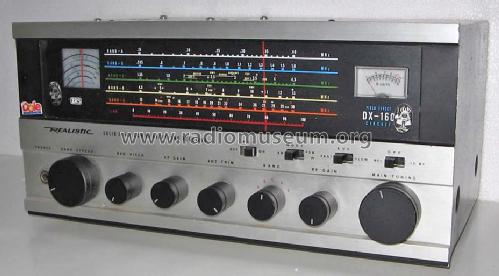

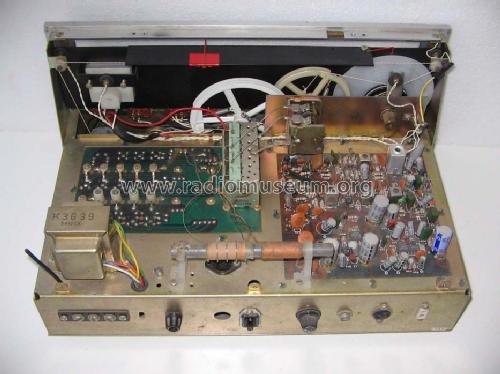

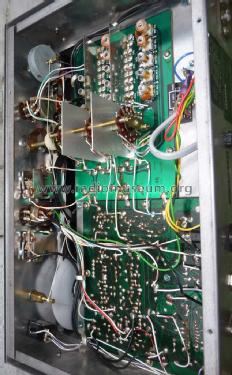

Realistic DX-160 Cat.-No. 20-152; Radio Shack Tandy, (ID = 411848) Amateur-R
Radio Shack Tandy,: Realistic DX-160 Cat.-No. 20-152 [Amateur-R] ID = 411848 933x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic DX-160 Cat.-No. 20-152, Radio Shack (Tandy, Realistic, Micronta); USA:
Lautsprecher gehört zum Vormodell

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1975–1980 Category: Amateur-Receiver (amateur bands, may include broadcast bands)

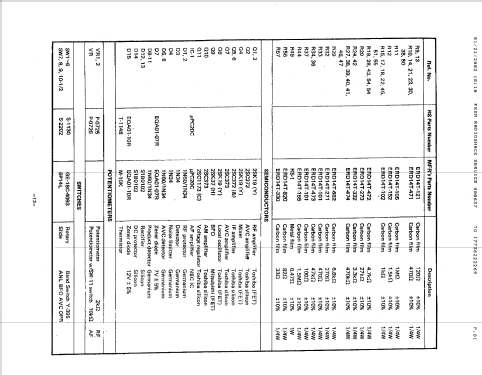

Semiconductors (the count is only for transistors) 11: 2SK19 2SC373 2SK19 2SK19 2SC372 2SC372 2SC373 2SK19 2SK37 2SC373 2SC1173 2SC373 µPC20
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details

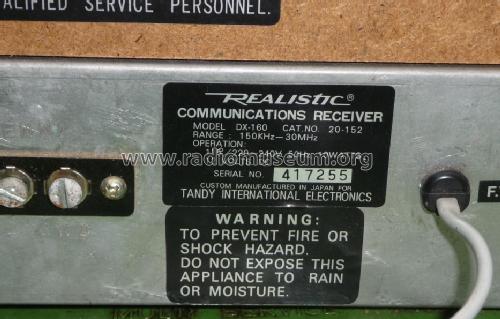

Power type and voltage Line / Batteries (any type) / 115; 220-240 / DC 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Realistic DX-160 Cat.-No. 20-152 - Radio Shack Tandy, Realistic,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.5 x 6.5 x 9.25 inch / 368 x 165 x 235 mm
Notes

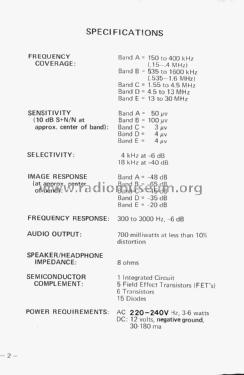

shortwave coverage 1,6 - 30 MHz and 5 spread ham bands; AM, SSB (BFO); supplied with matching external speaker The companion speaker for this radio is the Realistic SP-150.

The specifications sheet says 1 IC, 5 FETs, 6 transistors and 15 diodes, but, whilst the IC is marked on the schematic as an µPC20C, the balance of the semiconductors are not named. The receiver will accept 12 Volts DC input as well as 115/220-240 volts AC. Provision is made for single side band and CW reception but there is no provision for FM. The full frequency coverage is listed on the Specifications Sheet. Dating of this radio is from the manual. It quotes “the last sunspot peak activity WAS 1968, minimum activity Will Be about 1976”. This is clearly not a Hi Fi device with frequency response being quoted as 300 to 3000Hz at -6dB. Weight is without the external speaker. There is no provision for an internal aerial and the Manual recommends a "Long Wire" aerial initially with a more selective choice when particular areas of interest are developed.

Made in Japan

Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 160.00 $
Mentioned in Shortwave Receivers - Past & Present (3rd ed.) (3rd edition Page 348)
Literature/Schematics (1) Radio Shack Catalog (1975 Page 136)

Model page created by Martin Bösch. See "Data change" for further contributors.
