Realistic DX-394

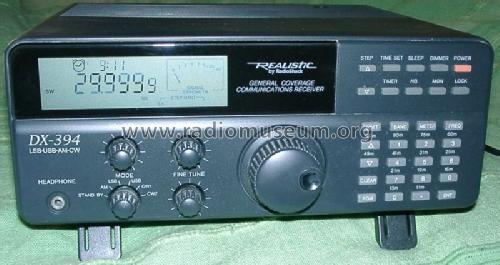

Realistic DX-394; Radio Shack Tandy, (ID = 329026) Amateur-R Realistic DX-394; Radio Shack Tandy, (ID = 1675906) Amateur-R
Use red slider bar for more.

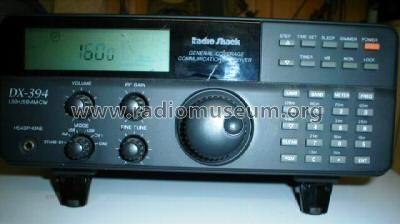

Realistic DX-394; Radio Shack Tandy, (ID = 329026) Amateur-R
Radio Shack Tandy,: Realistic DX-394 [Amateur-R] ID = 329026 400x224
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic DX-394, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1995–1998 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 220 / 8 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Realistic DX-394 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 233 x 96 x 230 mm / 9.2 x 3.8 x 9.1 inch
Notes coverage 150 - 30000 kHz, AM, SSB; 3 IF bandwidths; 160 memories, clock / timer
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Price in first year of sale 750.00 DM
Collectors' prices

Model page created by Martin Bösch. See "Data change" for further contributors.
