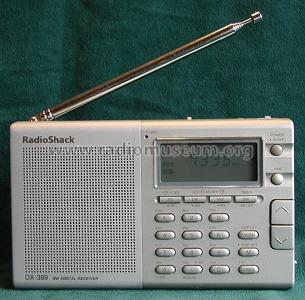

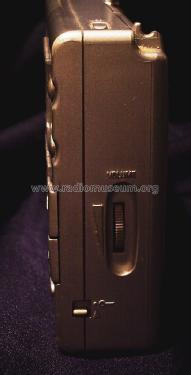

Realistic DX-399

Realistic DX-399; Radio Shack Tandy, (ID = 1439332) Radio Realistic DX-399; Radio Shack Tandy, (ID = 265022) Radio
Realistic DX-399; Radio Shack Tandy, (ID = 1439330) Radio Realistic DX-399; Radio Shack Tandy, (ID = 1439333) Radio
Realistic DX-399; Radio Shack Tandy, (ID = 1439334) Radio Realistic DX-399; Radio Shack Tandy, (ID = 1439335) Radio
Realistic DX-399; Radio Shack Tandy, (ID = 1439336) Radio Realistic DX-399; Radio Shack Tandy, (ID = 1439337) Radio
Use red slider bar for more.
Realistic DX-399; Radio Shack Tandy, (ID = 1439332) Radio
Radio Shack Tandy,: Realistic DX-399 [Radio] ID = 1439332 933x737
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic DX-399, Radio Shack (Tandy, Realistic, Micronta); USA:
By courtesy of EBAY Seller: perissos1

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1995 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Realistic DX-399 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 147 x 92 x 30 mm / 5.8 x 3.6 x 1.2 inch
Notes coverage 153 - 29995 kHz, digital readout, clock / timer;
also sold as Sangean ATS-606 .
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Martin Bösch. See "Data change" for further contributors.
