Realistic Patrolman 5 12-773

Realistic Patrolman 5 12-773; Radio Shack Tandy, (ID = 829585) Radio Realistic Patrolman 5 12-773; Radio Shack Tandy, (ID = 829586) Radio

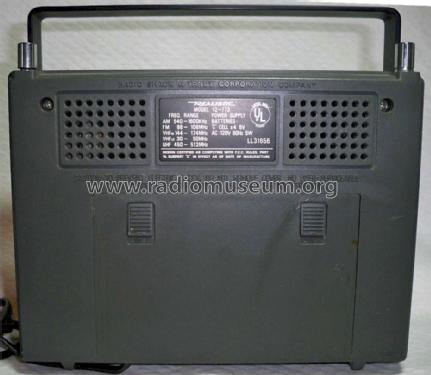

Realistic Patrolman 5 12-773; Radio Shack Tandy, (ID = 829587) Radio Realistic Patrolman 5 12-773; Radio Shack Tandy, (ID = 829588) Radio
Use red slider bar for more.
Realistic Patrolman 5 12-773; Radio Shack Tandy, (ID = 829585) Radio
Radio Shack Tandy,: Realistic Patrolman 5 12-773 [Radio] ID = 829585 933x788
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic Patrolman 5 12-773, Radio Shack (Tandy, Realistic, Micronta); USA:
Ebay US 170545544960 by satisfactionguaranteedboston

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1975 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 120 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: Realistic Patrolman 5 12-773 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9 x 6.5 x 2.75 inch / 229 x 165 x 70 mm
Notes Realistic Patrolman 5, 12-773;
Coverage 5 bands:
AM-MW, FM,
VHF hi: 147 - 174 MHz, with national weather service reports on 162.4 & 162.55 MHz,
VHF lo: 30 - 50 MHz,
UHF: 450 - 512 MHz,
squelch control, IC AF stage, headphones jack, ext. antenna jacks, triple conversion on UHF, two telescopic antennas.
Price in first year of sale 80.00 $
Source of data -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.
