Realistic Patrolman 12-627 Ch= 10A6 (Japan 205)

Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373728) Radio Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373729) Radio
Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373730) Radio Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373732) Radio
Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373731) Radio Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373725) Radio
Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373727) Radio Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373726) Radio
Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 776047) Radio Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 776049) Radio
Use red slider bar for more.
Realistic Patrolman 12-627 Ch= 10A6 ; Radio Shack Tandy, (ID = 2373728) Radio
Radio Shack Tandy,: Realistic Patrolman 12-627 Ch= 10A6 [Radio] ID = 2373728 1359x898
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic Patrolman 12-627 Ch= 10A6 (Japan 205), Radio Shack (Tandy, Realistic, Micronta); USA:
ebay 192753582393 army.tikka.1915

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1967–1969 Category: Broadcast Receiver - or past WW2 Tuner

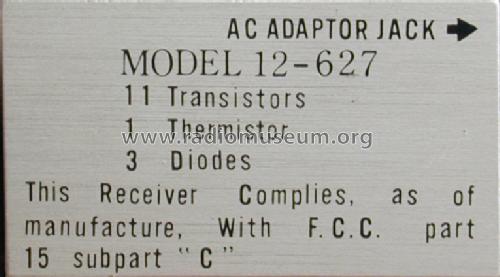

Semiconductors (the count is only for transistors) 11:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Other, details in remarks or not known. / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Realistic Patrolman 12-627 Ch= 10A6 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6 x 3.5 x 1.63 inch / 152 x 89 x 41 mm
Notes

Realistic Patrolman Solid State, VHF-AM, 11 Transistor; VHF: 147 - 175 MHz, earphone jack, telescopic antenna, ext. AC adaptor jack, separate AM & VHF dial window.

Made in Japan 205

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 24.95 USD
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in Radio Shack Catalog (1967, page 107)

Model page created by a member from A. See "Data change" for further contributors.
