• Country
• France

• Manufacturer / Brand
• MILITARY France, production militaire commune

• Year
• 1954 ??

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 222455

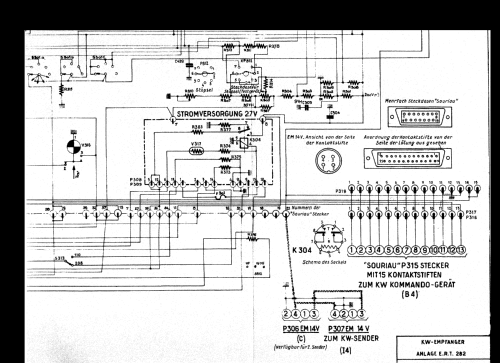

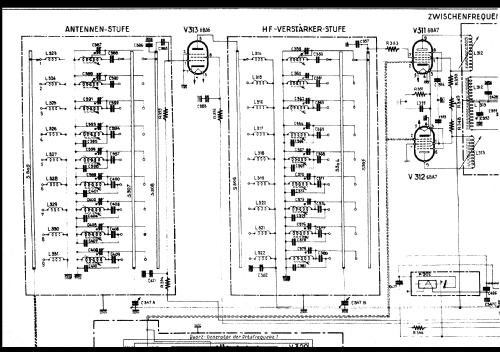

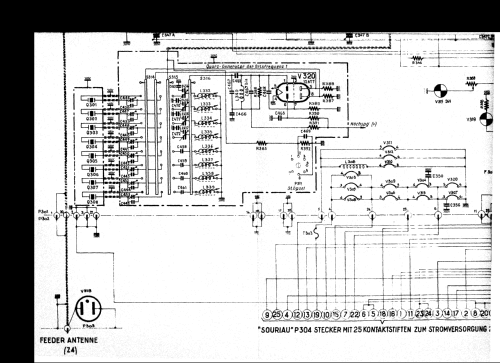

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6BA6 12AT7 6BA7 6AV6 6AK6

• Main principle
• Superheterodyne (common); ZF/IF 475 kHz; 2 AF stage(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 235 & 27 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

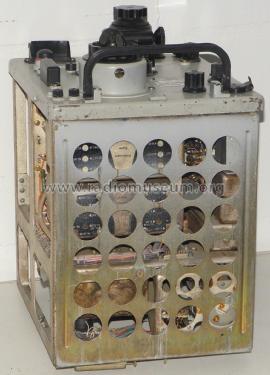

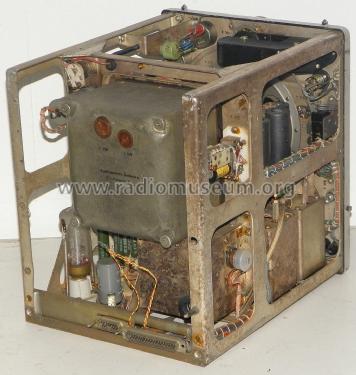

• Model: Émitteur-Récepteur / KW-Funkgerät ERT282 - MILITARY France, production

• Shape
• Rack

• Dimensions (WHD)
• 225 x 353 x 273 mm / 8.9 x 13.9 x 10.7 inch

• Notes
• KW 2,5-20 MHz in 9 Bereichen A1 A2 A3 für Verbindung Flugzeug-Bodenstation oder Flugzeug-Flugzeug.

• Net weight (2.2 lb = 1 kg)
• 10.1 kg / 22 lb 3.9 oz (22.247 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Manfred Schubert. See "Data change" for further contributors.
