• Year
  • 1954
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 194189

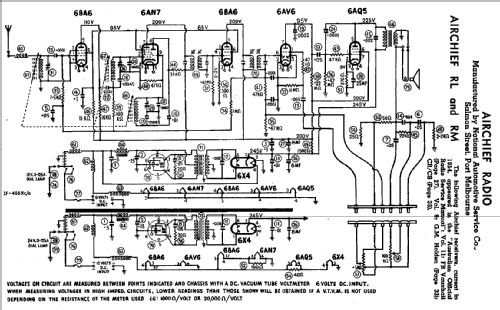

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

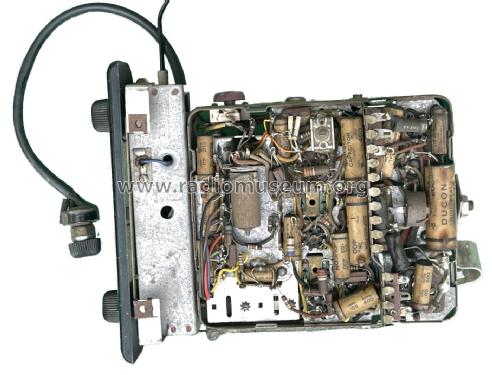

  • Model: Air Chief RM - Air Chief, brand of NASCO,
  • Shape
  • Chassis only or for «building in»
  • Notes
  • This model uses a non-synchronous vibrator power supply and permeability tuning.
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. XIII
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
