• Year
  • 1982 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 79489

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 220 Volt
  • Material
  • Metal case
  • from Radiomuseum.org

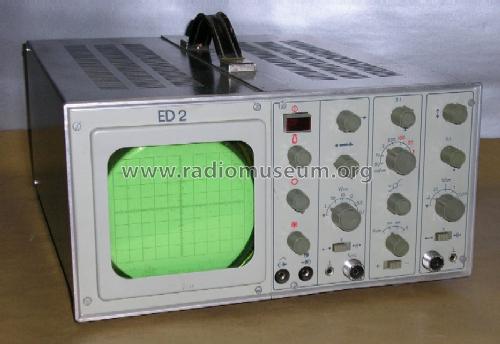

  • Model: Schuloszillograf ED2 - Radio-Fernsehen-Elektro, PGH;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 325 x 170 x 418 mm / 12.8 x 6.7 x 16.5 inch
  • Notes
  • Bildröhre B13S6
  • Net weight (2.2 lb = 1 kg)
  • 10.7 kg / 23 lb 9.1 oz (23.568 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Andreas Hamel. See "Data change" for further contributors.
