• Country
• Australia

• Manufacturer / Brand
• Radio and Hobbies, Radio Television & Hobbies, Electronics Australia magazine; Sydney

• Year
• 1970

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 283836

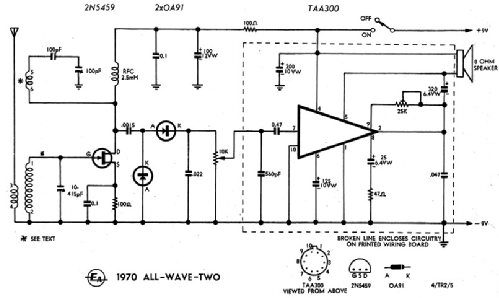

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• 2N5459 TAA300 OA91 OA91

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 1 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: All Wave Two 1970 - Radio and Hobbies, Radio

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9 x 7 x 6 inch / 229 x 178 x 152 mm

• Notes

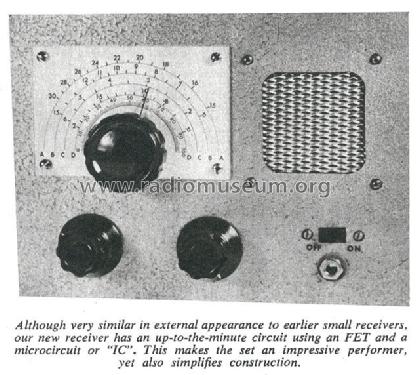

• Design first published in Electronics Australia April 1970. A simple receiver available as a kit for beginners interested in shortwave and amateur radio. The range 550 kHz to 30 MHz is covered using a set of four plug-in coils.

• Net weight (2.2 lb = 1 kg)
• 3 lb (3 lb 0 oz) / 1.362 kg

• Author
• Model page created by Susan Butcher. See "Data change" for further contributors.
