• Country
• Australia

• Manufacturer / Brand
• Radio and Hobbies, Radio Television & Hobbies, Electronics Australia magazine; Sydney

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275167

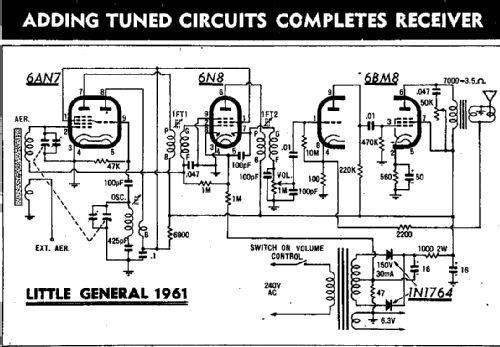

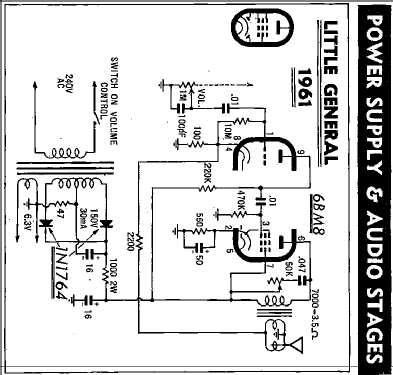

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AN7 6N8 6BM8

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Little General [1961] - Radio and Hobbies, Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• This is another updated version of the famous Radio & Hobbies Little General.

  The last version was 1956 and Alan Nutt has described the 1961 version over the March, April, May & June 1961 issues of Radio TV & Hobbies magazine.

  Once again this model is designed for simplicity, small size and as few components as possible. This version utilises 3 valves, silicon diode rectifiers and a ferrite aerial on an aluminium chassis and the radios construction is described in great detail over several issues to assist the beginner in radio construction.

• Mentioned in
• Radio TV & Hobbies, March, April, May & June 1961
