Champion Standard Superheterodyne 12-34
Radiokes; Sydney
- Country
- Australia
- Manufacturer / Brand
- Radiokes; Sydney
- Year
- 1935
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 265147
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; 3 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240-260 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Metal case
- from Radiomuseum.org

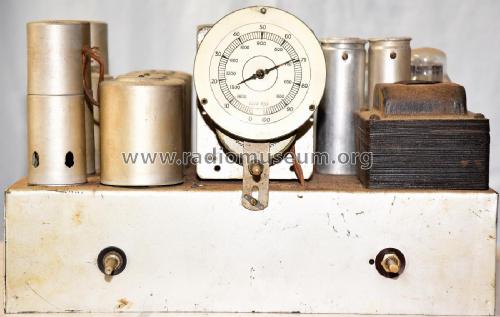

- Model: Champion Standard Superheterodyne 12-34 - Radiokes; Sydney
- Shape
- Chassis only or for «building in»
- Notes
-
Radiokes Kit-Set sold in 1935 for Aus£12/19/6, less tubes and speaker.
A battery version of the kit was available, chassis type 12-34B for Aus£9/7/6.
- Mentioned in
- Radiokes 1935-36 Catalogue
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
