• Year
  • 1935 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227254

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • 110-120 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: 95 - Radio Lamp Company; Chicago IL
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 0 x 23 x 0 inch / 0 x 584 x 0 mm
  • Notes

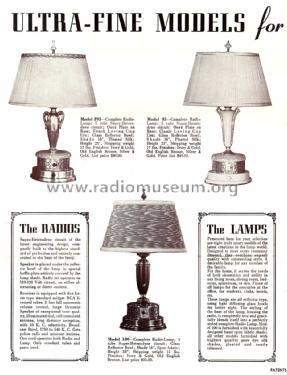

  • Complete Radio-Lamp. Onyx Plate on Base, Classic Cup Urn, Glass Reflector Bowl, Pleated Silk, Shade 16 inch. Finishes: Ivory & Gold, Old English Bronze, Silver & Gold. Speaker is placed under the reflector bowl of the lamp in special baffle plate entirely covered by the lamp shade. Broadcast 540 to 1750 kc.

  • Price in first year of sale
  • 40.00 $
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
