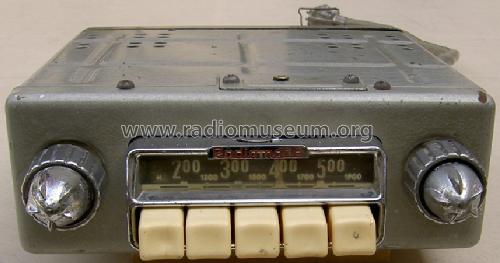

A2P; Radiomatic, S.F.R.T. (ID = 624524) Car Radio
Radiomatic, S.F.R.T.: A2P [Car Radio] ID = 624524 857x451
Select picture or schematic to display from thumbnails on the right and click for download.
For model A2P 6BE6, Radiomatic, S.F.R.T. (SFRT); Montreuil, Seine Saint Denise

Country:  France
Manufacturer / Brand:  Radiomatic, S.F.R.T. (SFRT); Montreuil, Seine Saint Denise
alternative name

SFRT
Year: 1953 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 8: 6BA6 6BE6 6BA6 6AV6 6AV6 6AQ5 6AQ5 6X4
Main principle ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (unknown quality)
from Radiomuseum.org Model: A2P [6BE6] - Radiomatic, S.F.R.T. SFRT;
Material Metal case
Shape Chassis only or for «building in»
Notes

Module radio identique à l'A2 S mais ampli de puissance en push pull.

Sensibilité:

  • PO: de 2µV à 5µV
  • GO: <4µV pour 500mW de sortie.  Avis: la documentation contient une erreur de frappe (mentionne ici OC au lieu de GO).

Impédance du transformateur de sortie: 2.15Ω (à 400Hz).

Poids et dimensions:

  • Boîtier de commande: 2,5 kg, 179 x 63 x 210 mm.

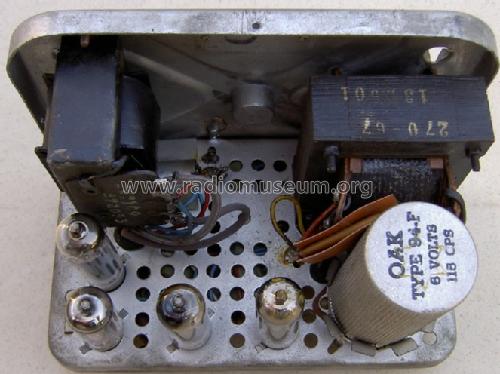

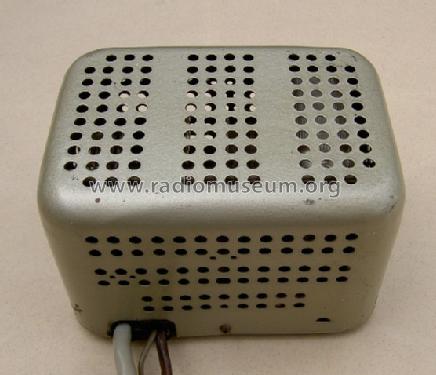

  • Boîtier d'alimentation: 2,7 kg,  179 x 130 x 112 mm.



Literature/Schematics (1) - - Manufacturers Literature

Model page created by Christian ADAM. See "Data change" for further contributors.
