• Country
• France

• Manufacturer / Brand
• Radio-MJ (M.-J.); Paris

• Year
• 1951

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 262141

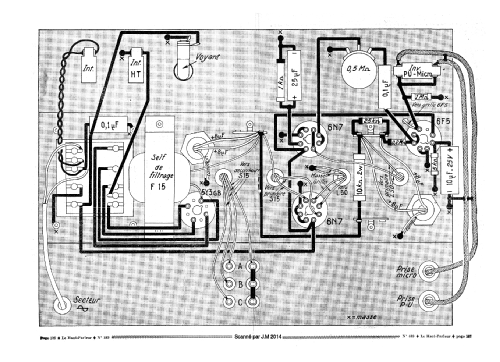

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6F5 6N7 6N7 5Y3GB

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• from Radiomuseum.org
• Model: Amplificateur 6N7 - Radio-MJ M.-J.; Paris

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 350 x 70 x 105 mm / 13.8 x 2.8 x 4.1 inch

• Notes

• Amplificateur de sonorisation 6N7, classe B.
  Une entrée PU.
  Les transformateurs et self sont de la marque C.E.A.
  Transformateur d'alimentation 300V/0.1A
  Self de filtrage F15.
  Transformateur de liaison L50.
  Transformateur de sortie S15U.

• Price in first year of sale
• 12,835.00 FRF

• Mentioned in
• Le Haut-Parleur (No 889, 1951, p. 125)

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
