Auditorium Batteri

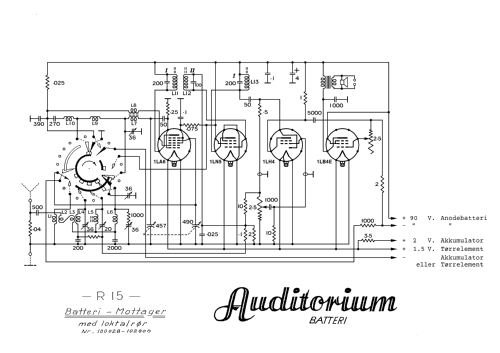

Auditorium Batteri ; Radionette; Oslo (ID = 2450550) Radio
Auditorium Batteri ; Radionette; Oslo (ID = 407407) Radio
Use red slider bar for more.
Auditorium Batteri ; Radionette; Oslo (ID = 407407) Radio
Radionette; Oslo: Auditorium Batteri [Radio] ID = 407407 621x361
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auditorium Batteri, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1LA6 1LN5 1LH4 1LB4
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 90/2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Auditorium Batteri - Radionette; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 525 x 300 x 220 mm / 20.7 x 11.8 x 8.7 inch
Notes

LW 150-370 kHz
MW 510-1520 kHz
GW 1460-2500 KHz (Fischereiband)
KW 6-23 MHz

Price in first year of sale 365.00 NKr

Model page created by Ernst Rykkje. See "Data change" for further contributors.
