• Country
• Norway

• Manufacturer / Brand
• Radionette; Oslo

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71272

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF102 AF125 AF125 AF126 AF126 AC125 AC125 AC128 AC128 AC122 AC117 OA79 OA79 OA79 OA79 OA150

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Line / Batteries (any type) / 230 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

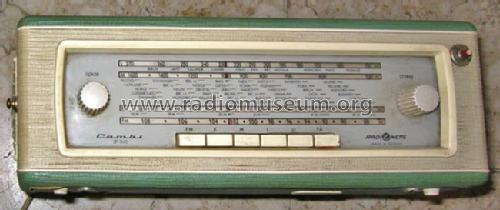

• Model: Combi FM - Radionette; Oslo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 235 x 125 mm / 13 x 9.3 x 4.9 inch

• Price in first year of sale
• 750.00 NKr.

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
