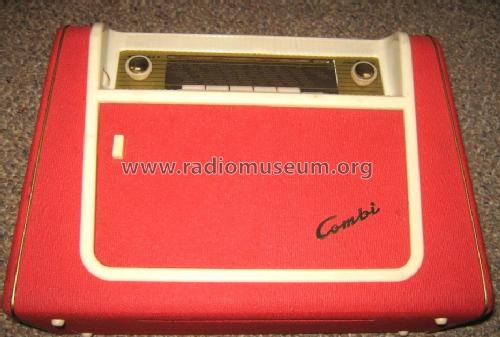

Combi Star ; Radionette; Oslo (ID = 55023) Radio Combi Star ; Radionette; Oslo (ID = 1575263) Radio
Combi Star ; Radionette; Oslo (ID = 295346) Radio Combi Star ; Radionette; Oslo (ID = 1575249) Radio
Combi Star ; Radionette; Oslo (ID = 1575250) Radio Combi Star ; Radionette; Oslo (ID = 1575252) Radio
Combi Star ; Radionette; Oslo (ID = 1575253) Radio Combi Star ; Radionette; Oslo (ID = 1575255) Radio
Combi Star ; Radionette; Oslo (ID = 1575256) Radio Combi Star ; Radionette; Oslo (ID = 1575259) Radio
Use red slider bar for more.
Combi Star ; Radionette; Oslo (ID = 55023) Radio
Radionette; Oslo: Combi Star [Radio] ID = 55023 657x537
Select picture or schematic to display from thumbnails on the right and click for download.
For model Combi Star, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC170 OC45 or. OC169 OC45 or. OC169 OC75 OC75 OC74 OC74 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Combi Star - Radionette; Oslo
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 365 x 265 x 155 mm / 14.4 x 10.4 x 6.1 inch
Notes

Portable radio with gramophone for 45 rpm single records,
four wavebands 16 to 2.000 meters, built-in aerial.

SW: 5.6 - 19 MHz
Fishery-band: 1.7 - 5.2 MHz
MW: 500 - 1650 kHz
LW: 150 - 315 kHz.

Price in first year of sale 590.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.
