Duett Hi-Fi Seksjon 6

Duett Hi-Fi Seksjon 6 ; Radionette; Oslo (ID = 55948) Radio Duett Hi-Fi Seksjon 6 ; Radionette; Oslo (ID = 252691) Radio

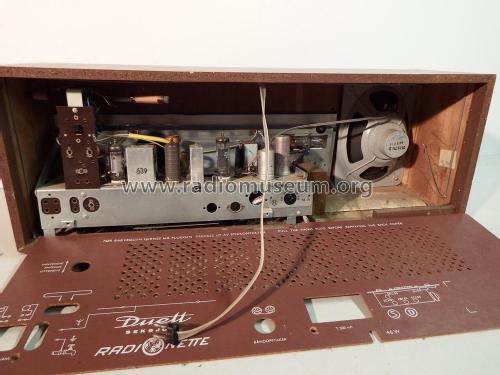

Duett Hi-Fi Seksjon 6 ; Radionette; Oslo (ID = 1845793) Radio
Use red slider bar for more.
Duett Hi-Fi Seksjon 6 ; Radionette; Oslo (ID = 55948) Radio
Radionette; Oslo: Duett Hi-Fi Seksjon 6 [Radio] ID = 55948 789x368
Select picture or schematic to display from thumbnails on the right and click for download.
For model Duett Hi-Fi Seksjon 6, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Super-Heterodyne (Super in general); ZF/IF 450 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Duett Hi-Fi Seksjon 6 - Radionette; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 680 x 250 x 200 mm / 26.8 x 9.8 x 7.9 inch
Price in first year of sale 685.00 NKr.
Collectors' prices

Model page created by Ernst Rykkje. See "Data change" for further contributors.
