Kurer Transi Export

Kurer Transi ; Radionette; Oslo (ID = 1908835) Radio
Kurer Transi ; Radionette; Oslo (ID = 761784) Radio Kurer Transi ; Radionette; Oslo (ID = 761789) Radio
Kurer Transi ; Radionette; Oslo (ID = 761786) Radio Kurer Transi ; Radionette; Oslo (ID = 295344) Radio
Kurer Transi ; Radionette; Oslo (ID = 295345) Radio Kurer Transi ; Radionette; Oslo (ID = 761788) Radio
Kurer Transi ; Radionette; Oslo (ID = 761790) Radio
Use red slider bar for more.
Kurer Transi ; Radionette; Oslo (ID = 761784) Radio

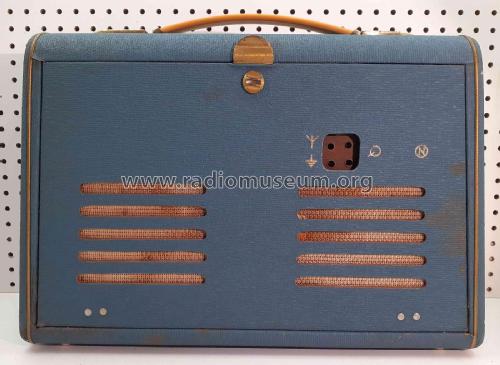

Radionette; Oslo: Kurer Transi [Radio] ID = 761784 800x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kurer Transi Export, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: unknown_tr 2N410 2N410 OC75 OC75 OC72 OC72
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Kurer Transi [Export] - Radionette; Oslo
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Notes 4 wavebands 10 to 600 metres, built-in aerial. The speaker have of impedance 120 ohms and is oval.
Mentioned in -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.
