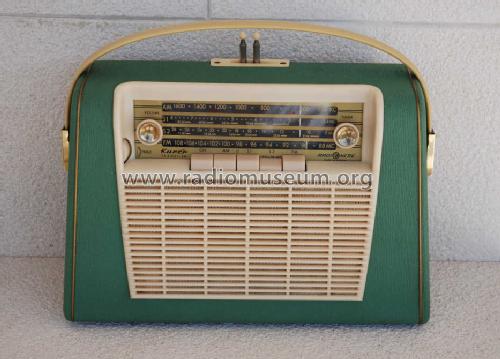

Kurér Transi FM (export version)

Kurér Transi FM ; Radionette; Oslo (ID = 1156106) Radio
Kurér Transi FM ; Radionette; Oslo (ID = 1156091) Radio Kurér Transi FM ; Radionette; Oslo (ID = 1156094) Radio
Kurér Transi FM ; Radionette; Oslo (ID = 1156096) Radio Kurér Transi FM ; Radionette; Oslo (ID = 1156098) Radio
Kurér Transi FM ; Radionette; Oslo (ID = 1156100) Radio Kurér Transi FM ; Radionette; Oslo (ID = 1156101) Radio
Kurér Transi FM ; Radionette; Oslo (ID = 1156102) Radio Kurér Transi FM ; Radionette; Oslo (ID = 1156104) Radio
Use red slider bar for more.
Kurér Transi FM ; Radionette; Oslo (ID = 1156091) Radio
Radionette; Oslo: Kurér Transi FM [Radio] ID = 1156091 933x670
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kurér Transi FM (export version), Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF115 AF117 AF117 OC75 OC75 OC74 OC74 OA79
Main principle Superheterodyne (common); ZF/IF ? /10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Kurér Transi FM - Radionette; Oslo
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 230 x 130 mm / 13 x 9.1 x 5.1 inch
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Source of data - - Data from my own collection

Model page created by José Manuel Silvestre. See "Data change" for further contributors.
