Kurér Transi FM (Kurer)

Kurér Transi FM ; Radionette; Oslo (ID = 56612) Radio
Kurér Transi FM ; Radionette; Oslo (ID = 54986) Radio Kurér Transi FM ; Radionette; Oslo (ID = 106709) Radio

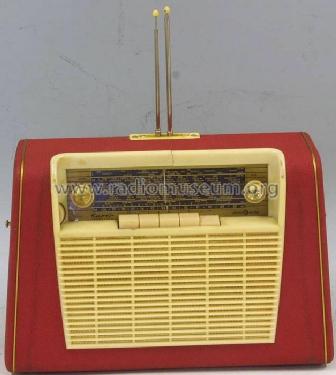

Kurér Transi FM ; Radionette; Oslo (ID = 106710) Radio Kurér Transi FM ; Radionette; Oslo (ID = 216136) Radio
Kurér Transi FM ; Radionette; Oslo (ID = 216150) Radio
Use red slider bar for more.
Kurér Transi FM ; Radionette; Oslo (ID = 54986) Radio
Radionette; Oslo: Kurér Transi FM [Radio] ID = 54986 597x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kurér Transi FM (Kurer), Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF115 AF117 AF117 OC75 OC75 OC74 OC74 OA79
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Kurér Transi FM - Radionette; Oslo
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 230 x 130 mm / 13.4 x 9.1 x 5.1 inch
Notes

5 Germanium diodes OA79.

Price in first year of sale 580.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.
