• Country
• France

• Manufacturer / Brand
• Radio-Nox (Vox); Bayonne

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 335477

• Number of Tubes
• 9

• Valves / Tubes
• EF41 ECH41 EF41 EBC41 EM34 EBC41 EL41 EL41 5Y3

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115-130 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

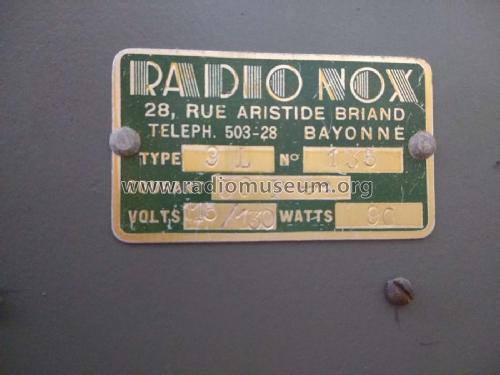

• Model: 9L - Radio-Nox Vox; Bayonne

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 430 x 320 mm / 25.2 x 16.9 x 12.6 inch

• Notes

• Push-pull output stage.

• Net weight (2.2 lb = 1 kg)
• 19.5 kg / 42 lb 15.2 oz (42.952 lb)

• Author
• Model page created by Jose Luis Espinosa Gonzalez. See "Data change" for further contributors.
