Partizan S511A

Partizan S511A; Radio Popular, (ID = 2065188) Radio

Partizan S511A; Radio Popular, (ID = 2065189) Radio

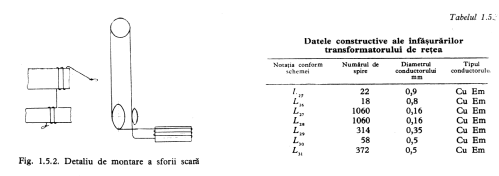

Partizan S511A; Radio Popular, (ID = 2065190) Radio
Partizan S511A; Radio Popular, (ID = 149070) Radio
Use red slider bar for more.
Partizan S511A; Radio Popular, (ID = 149070) Radio
Radio Popular,: Partizan S511A [Radio] ID = 149070 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Partizan S511A, Radio Popular, Bucharest:

Country:  Romania
Manufacturer / Brand:  Radio Popular, Bucharest
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6А8 6К7 6Ж7 6П6С 5Ц4С
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Partizan S511A - Radio Popular, Bucharest
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 310 x 250 mm / 19.7 x 12.2 x 9.8 inch
Notes Bands: LW: 150-500 kHz; MW: 510-1800 kHz; SW: 15-50 m; Tubes: Soviet Union.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Literature/Schematics (1) T. Chiriac, I. Dinu, N. Soroceanu: Scheme de radioreceptoare, Ed. Tehnica, 1975

Model page created by Lenuta Chirita. See "Data change" for further contributors.



All listed radios etc. from Radio Popular, Bucharest
Here you find 40 models, 30 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
