• Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 156192

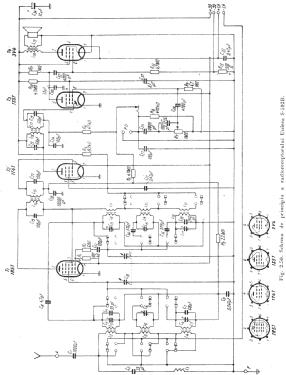

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 473 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 1.4; 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
  • Power out
  • 0.15 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

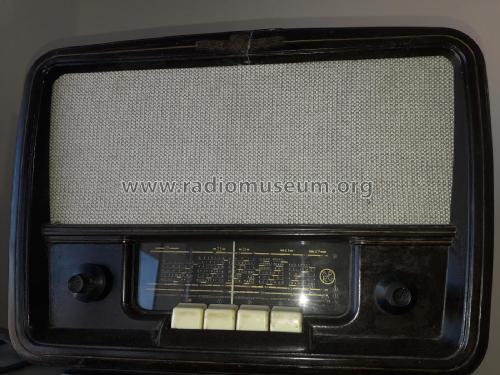

  • Model: Unirea S592B - Radio Popular; București -
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 375 x 285 x 190 mm / 14.8 x 11.2 x 7.5 inch
  • Literature/Schematics (1)
  • Scheme de Radioreceptoare vol.I Editura Tehnica 1973
  • Author
  • Model page created by Francisc VISKY. See "Data change" for further contributors.
