• Year
  • 1955
  • Category
  • Detector-Radio (Crystal or diode, without tubes/transistors)
  • Radiomuseum.org ID
  • 278368

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • OA56
  • Main principle
  • Crystal or Solid State Detector
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - Is a Headphone or Earphone
  • Material
  • Various materials
  • from Radiomuseum.org

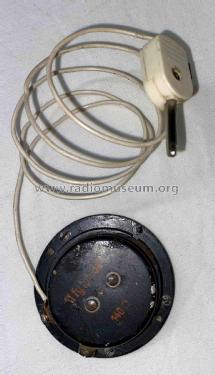

  • Model: Darling - Radiopraktiker, Wien
  • Notes
  • Darling, vermutlich der einfachste und billigste Detektorempfänger. Der Hit 1955.
    Materialkosten: Diode OA56 16ATS, Hörerkapsel 140 Ohm 4 ATS.
    Dieser Detektor wurde tausendfach nachgebaut, was sogar zu einer Materialverknappung führte. Bauanleitung im Radiopraktiker 1955 Nr.5

  • Author
  • Model page created by Gerhard Heigl. See "Data change" for further contributors.
