90LX661

90LX661 ; Radio Shack Tandy, (ID = 2257658) Radio 90LX661 ; Radio Shack Tandy, (ID = 2257656) Radio

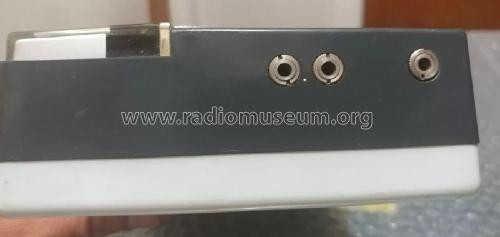

90LX661 ; Radio Shack Tandy, (ID = 2257657) Radio 90LX661 ; Radio Shack Tandy, (ID = 2257659) Radio
Use red slider bar for more.

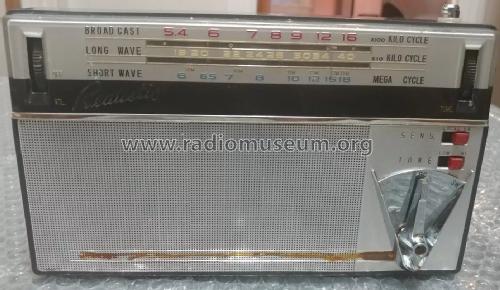

90LX661 ; Radio Shack Tandy, (ID = 2257658) Radio
Radio Shack Tandy,: 90LX661 [Radio] ID = 2257658 1395x811
Select picture or schematic to display from thumbnails on the right and click for download.
For model 90LX661, Radio Shack (Tandy, Realistic, Micronta); USA:
ebay.com 173318818436 seller racer-hart

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 90LX661 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Notes

Note: The battery connector in the photograph is not original.

Made in Japan

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 538, Folder 11, June 1961)

Model page created by Aldo Andreani. See "Data change" for further contributors.
