AM/FM Table Radio MTA-16 (MTA-15) Cat. No. 12-700 (12-695)

AM/FM Table Radio MTA-16 Cat. No. 12-700 ; Radio Shack Tandy, (ID = 2621283) Radio AM/FM Table Radio MTA-16 Cat. No. 12-700 ; Radio Shack Tandy, (ID = 2621280) Radio
Use red slider bar for more.

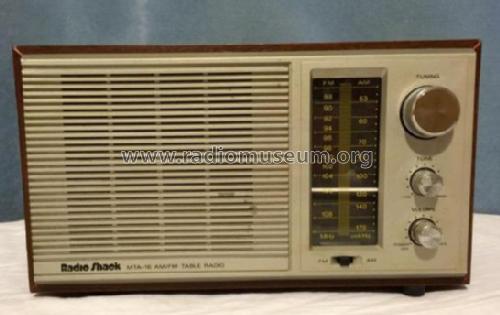

AM/FM Table Radio MTA-16 Cat. No. 12-700 ; Radio Shack Tandy, (ID = 2621283) Radio
Radio Shack Tandy,: AM/FM Table Radio MTA-16 Cat. No. 12-700 [Radio] ID = 2621283 546x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Table Radio MTA-16 (MTA-15) Cat. No. 12-700 (12-695), Radio Shack (Tandy, Realistic, Micronta); USA:
Picture from anonymous collector.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1991/1992 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: AM/FM Table Radio MTA-16 Cat. No. 12-700 - Radio Shack Tandy, Realistic,
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 10.75 x 6 x 4 inch / 273 x 152 x 102 mm
Notes

Radio Shack AM-FM Table Top Radio Model MTA-16, Cat. No. 12-700.
Tuning Range: AM 530 - 1710 kHz, FM 88 - 108 MHz.
Power Consumption 8 Watts.

Note:  The MTA-16 could not be found in the Radio Shack catalogs.  There is, however, a MTA-15, Cat. No. 12-695 that appears identical in appearance.  This model appears as "new" on page 30 of the 1991 catalog and last appears in the 1992 catalog.

Made in China

Model page created by Franz Scharner. See "Data change" for further contributors.
