For model Archer Road Patrol - AM Bicycle Radio 12-197, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1982–1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: Archer Road Patrol - AM Bicycle Radio 12-197 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.25 x 3.875 x 3.5 inch / 133 x 98 x 89 mm
Notes

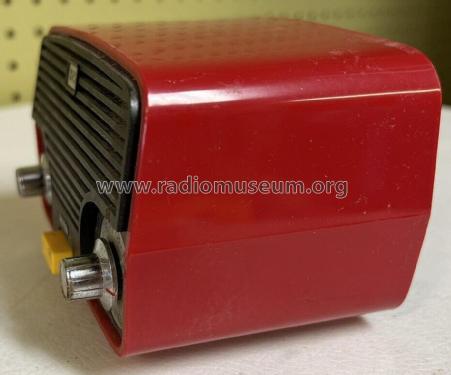

Archer Road Patrol 12-197, Bike Radio with Horn. 3" Reflector for Riding Safety.
Mounts on most handlebars. AM radio removes easily, bracket stays on bike.

Price in first year of sale 19.95 $
Mentioned in Radio Shack Catalog (1982, page 143; 1983, page 143; 1984, page 83; 1985, page 98; 1987, page 79.)

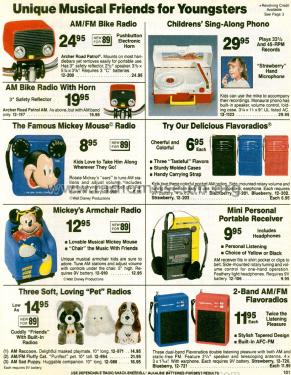

Literature/Schematics (1) Radio Shack Catalog (1989, No. 432, page 101, 1990, No. 446, page 97.)

Model page created by Noemi Erb. See "Data change" for further contributors.
