For model Chronomatic-263 12-1573, Radio Shack (Tandy, Realistic, Micronta); USA:
By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at .RadioShackCatalogs.com. This picture is from 1991, page 28.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1990–1993 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: Chronomatic-263 12-1573 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 8 x 3.5 x 4.5 inch / 203 x 89 x 114 mm
Notes

Radio Shack FM/AM  Alarm Clock Radio Model Realistic Chronomatic-263 Model Number 12-1573..
Tuning Range: AM 530 - 1710 kHz, FM 88 - 108 MHz.
Power Consumption 8 Watts.
Power Back-Up for Clock 9V.
Made in China.

Price in first year of sale 27.95 $

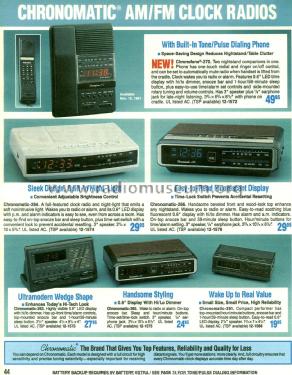

Literature/Schematics (2) Radio Shack Catalog (1992, No. 472, page 44, 1993, page 32.)
Literature/Schematics (3) Radio Shack Catalog (1991, No.459, page 28.)
Literature/Schematics (4) Radio Shack Catalog ((1990, No. 446, page 98.))

Model page created by Franz Scharner. See "Data change" for further contributors.
