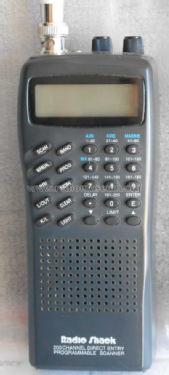

Hyperscan Pro-51 (Hand Held Scanner) 20-308A

Hyperscan Pro-51 20-308A; Radio Shack Tandy, (ID = 1589895) Radio Hyperscan Pro-51 20-308A; Radio Shack Tandy, (ID = 1589887) Radio
Hyperscan Pro-51 20-308A; Radio Shack Tandy, (ID = 1589903) Radio
Use red slider bar for more.
Hyperscan Pro-51 20-308A; Radio Shack Tandy, (ID = 1589895) Radio
Radio Shack Tandy,: Hyperscan Pro-51 20-308A [Radio] ID = 1589895 403x891
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hyperscan Pro-51 (Hand Held Scanner) 20-308A, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1994 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle PLL, Phase-locked loop; ZF/IF 10800 and 450 kHz
Wave bands Wave Bands given in the notes.
Details Scanner - multiband or special
Power type and voltage Batteries / addl. power jack / AA 4 x 1.5 / DC 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.7 inch = 4.3 cm
Power out
from Radiomuseum.org Model: Hyperscan Pro-51 20-308A - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6 x 2 x 1 inch / 152 x 51 x 25 mm

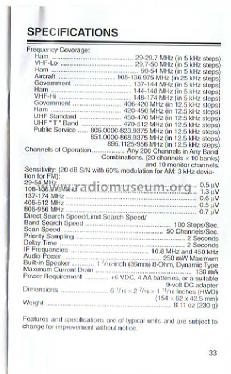

Notes

Hyperscan Pro-51 Scanner, double conversion superheterodyne with PLL tuning.

Coverage: 29 ... 956 MHz in 14 subbands
Mode: AM, FM
Channels of operation: any 200 channels in any band combinations
(20 channels x 10 banks) and 10 monitor channels.

Net weight (2.2 lb = 1 kg) 8 lb 11 oz (8.688 lb) / 3.944 kg
Collectors' prices
Literature/Schematics (1) Radio Shack Catalog
Literature/Schematics (2) -- Schematic

Model page created by John Richards. See "Data change" for further contributors.
